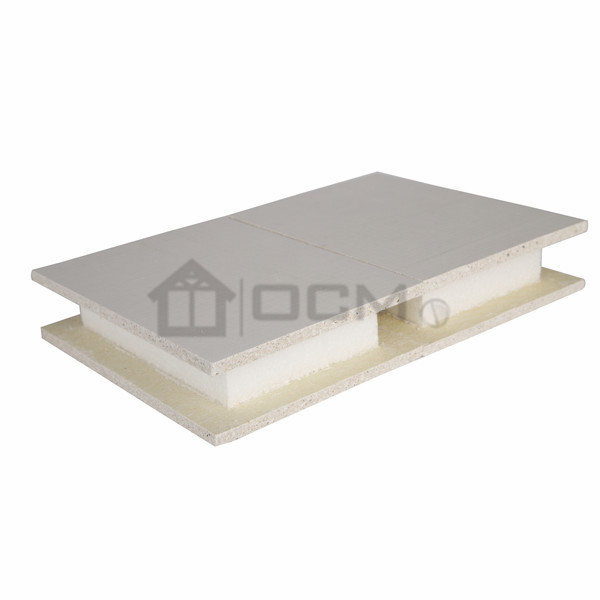

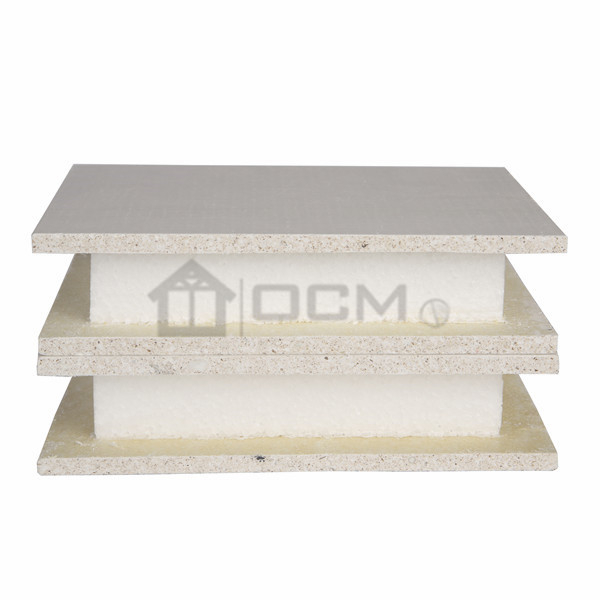

Panel Skins options include
Magnesium Board, Fiber cement board and OSB .
Insulation Core options include
Expanded Polystyrene(EPS),Extruded Polystyrene(XPS).
Panel Specification
Standard sizes are 4*8’ 4*9’ 4*10’ in various thickness.
Other Specification could be customized according to customer’s requirement.
Connection can be Tongue & Groove, Camlock, two or four sides closed.
OCM® have design and technical department can design SIP special for you. Just let us know you ideal and we can do the rest.
>>Please contact eith OCM salse for get connection solution
Panel Skins options include
Magnesium Board, Fiber cement board and OSB .
Insulation Core options include
Expanded Polystyrene(EPS),Extruded Polystyrene(XPS).
Panel Specification
Standard sizes are 4*8’ 4*9’ 4*10’ in various thickness.
Other Specification could be customized according to customer’s requirement.
Connection can be Tongue & Groove, Camlock, two or four sides closed.
OCM® have design and technical department can design SIP special for you. Just let us know you ideal and we can do the rest.
>>Please contact eith OCM salse for get connection solution
Technical Data for OCM SIPs | |||||
Items | Units | 120mm | 100mm | 75mm | 50mm |
Volume weight | Kg/m3 | 750-800 | |||
Anti-bending damage load | Times | ≥4.0 | ≥4.0 | ≥3.0 | ≥3.0 |
Anti-pressure strength | Mpa | ≥3.5 | |||
Anti-impact performance | Times | ≥5.0 | |||
Soften coefficient | ≥0.8 | ||||
Moisture content | % | ≤6 | ≤8 | ||
Drying shrinkage value | mm/m | ≤0.6 | |||
Single-point hanging strength | N | ≥1000 | |||
Heat-transfer coefficient | W/(m2.k) | / | 2.95 | 3.021 | 3.215 |
Combustion performance | Grade | A | |||
Fire resistance | H | ≥4.5 | ≥4.0 | ≥2.5 | ≥1.0 |
Sound insulation | Db | ≥47 | ≥42 | ≥40 | ≥35 |
Radiation | A (First Class, no limit of production & distribution ) | ||||
Conservation of Environment | 100% free of asbestos |
Sandwich Panel Application
1) Partition
2) External wall
3)Roof
4)Movable house
5)Container House
Details please refer to Project cases
Technical Data for OCM SIPs | |||||
Items | Units | 120mm | 100mm | 75mm | 50mm |
Volume weight | Kg/m3 | 750-800 | |||
Anti-bending damage load | Times | ≥4.0 | ≥4.0 | ≥3.0 | ≥3.0 |
Anti-pressure strength | Mpa | ≥3.5 | |||
Anti-impact performance | Times | ≥5.0 | |||
Soften coefficient | ≥0.8 | ||||
Moisture content | % | ≤6 | ≤8 | ||
Drying shrinkage value | mm/m | ≤0.6 | |||
Single-point hanging strength | N | ≥1000 | |||
Heat-transfer coefficient | W/(m2.k) | / | 2.95 | 3.021 | 3.215 |
Combustion performance | Grade | A | |||
Fire resistance | H | ≥4.5 | ≥4.0 | ≥2.5 | ≥1.0 |
Sound insulation | Db | ≥47 | ≥42 | ≥40 | ≥35 |
Radiation | A (First Class, no limit of production & distribution ) | ||||
Conservation of Environment | 100% free of asbestos |
Sandwich Panel Application
1) Partition
2) External wall
3)Roof
4)Movable house
5)Container House
Details please refer to Project cases
Sandwich Panel Main Characteristic
1. Fireproof, Grade-A
2. Light weight and easy to install
3. Moisture-proof
4. Sound insulation
5. Environmental, 100% no asbestos
The benefits below will show you without a doubt why you should build with a OCM® Structural Insulated Panel System
and live in a stronger and safer home where you can truly enjoy long term energy savings, with quieter and warmer surroundings.
Key Benefits
1. Simplicity – 1 assembly process, replaces 8 separate processes in one step. Saving you time and stress
2. Stronger – Independently tested to withstand severe earthquakes and cyclonic winds
3. Water Resistant – Will absorb very little water, and will breathe it out without losing any structural integrity
4. Impact Resistant – You will struggle to put anything through this panel. Trust us we have tried
5. Comfort & Efficiency – Better quality insulation for both heat and sound so you can save up to 40% on power and heating bills
6. Fire Rated – Fire resistant with Zero Flame spread, Zero Smoke spread
7. Quicker – Build time is significantly quicker, saving you labour costs
8. Greener – Less harmful on the environment to produce
9. Mould & Insect Proof, plus its Hypoallergenic – No toxic materials used; Neutral to allergies; doesn’t attract or harbor mould or bacteria,so insects aren’t interested
Sandwich Panel Main Characteristic
1. Fireproof, Grade-A
2. Light weight and easy to install
3. Moisture-proof
4. Sound insulation
5. Environmental, 100% no asbestos
The benefits below will show you without a doubt why you should build with a OCM® Structural Insulated Panel System
and live in a stronger and safer home where you can truly enjoy long term energy savings, with quieter and warmer surroundings.
Key Benefits
1. Simplicity – 1 assembly process, replaces 8 separate processes in one step. Saving you time and stress
2. Stronger – Independently tested to withstand severe earthquakes and cyclonic winds
3. Water Resistant – Will absorb very little water, and will breathe it out without losing any structural integrity
4. Impact Resistant – You will struggle to put anything through this panel. Trust us we have tried
5. Comfort & Efficiency – Better quality insulation for both heat and sound so you can save up to 40% on power and heating bills
6. Fire Rated – Fire resistant with Zero Flame spread, Zero Smoke spread
7. Quicker – Build time is significantly quicker, saving you labour costs
8. Greener – Less harmful on the environment to produce
9. Mould & Insect Proof, plus its Hypoallergenic – No toxic materials used; Neutral to allergies; doesn’t attract or harbor mould or bacteria,so insects aren’t interested
