| Quantity: | |
|---|---|

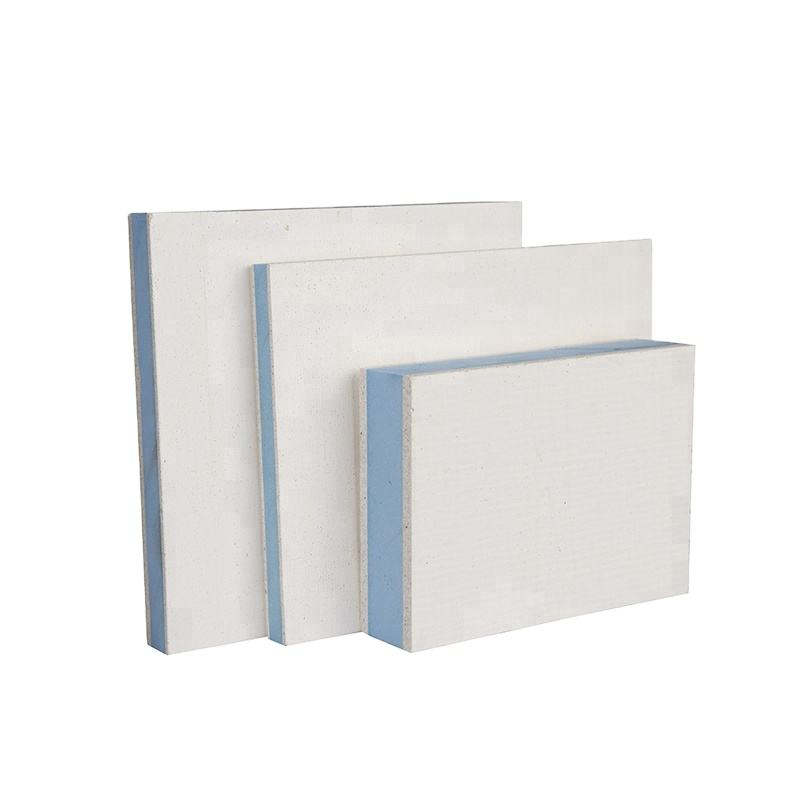

| Base Material | Mgo board+EPS+Mgo board,Mgo board +XPS+Mgo board | ||||
| Width(mm) | 600 ,1100 ,1220 | ||||
| Length(mm) | 1100, 2100, 2440 ,2600, 2700 ,2800, 2900, 3000 | ||||
| Thickness(mm) | 25mm-300mm | ||||
| Insulation types | EPS,XPS,PU,PUR,PIR,....etc | ||||
| Fireproof | More than 3 hours | ||||
| Application | external wall,Interior wall,proof panels,floors,partition,roof,prefab house | ||||
| Advantage | 100% no asbestos ,Light weight,easy to install,Fireproof,Moistureproof, Watweproof,Anticorrosive,Energy efficient,Environmentally Friendly | ||||
| Technical Date | Units | EPS Sandwich panel | XPS sandwich panel |
| Density | Kg/m3 | 18-20 | 36-40 |
| Thermal conductivity,90 days,10℃ | W/mk | ≤0.04 | 0.027-0.03 |
| Compressive strength at 10% deflection or yield,(Vertical) | kPa | ≥100 | ≤300 |
| Tensile strength | kPa | ≥100 | ≤300 |
| Temperature limits | ℃ | -50,+75 | -50,+75 |
| Coefficient of linear thermal expansion | mm/mk | / | 0.07 |
| Water absorption | Vol-% | / | ≥1.00%n |
| Capillarity | nil | / | nil |
| Structure | T&G | Cam lock | Sides closed |
| Base Material | Mgo board+EPS+Mgo board,Mgo board +XPS+Mgo board | ||||
| Width(mm) | 600 ,1100 ,1220 | ||||
| Length(mm) | 1100, 2100, 2440 ,2600, 2700 ,2800, 2900, 3000 | ||||
| Thickness(mm) | 25mm-300mm | ||||
| Insulation types | EPS,XPS,PU,PUR,PIR,....etc | ||||
| Fireproof | More than 3 hours | ||||
| Application | external wall,Interior wall,proof panels,floors,partition,roof,prefab house | ||||
| Advantage | 100% no asbestos ,Light weight,easy to install,Fireproof,Moistureproof, Watweproof,Anticorrosive,Energy efficient,Environmentally Friendly | ||||
| Technical Date | Units | EPS Sandwich panel | XPS sandwich panel |
| Density | Kg/m3 | 18-20 | 36-40 |
| Thermal conductivity,90 days,10℃ | W/mk | ≤0.04 | 0.027-0.03 |
| Compressive strength at 10% deflection or yield,(Vertical) | kPa | ≥100 | ≤300 |
| Tensile strength | kPa | ≥100 | ≤300 |
| Temperature limits | ℃ | -50,+75 | -50,+75 |
| Coefficient of linear thermal expansion | mm/mk | / | 0.07 |
| Water absorption | Vol-% | / | ≥1.00%n |
| Capillarity | nil | / | nil |
| Structure | T&G | Cam lock | Sides closed |
