ocm
It consists of a sandwich of two layers of structural board with an insulating foam in between
Panel skins options include
magnesium oxide boards(MGO)
Fiber cement board (FCB)
Oriented strand board(OSB)
Insulation core options include
Expanded Polystyrene(EPS)
Extruded Polystyrene(XPS)
Poly Urethane (PU)
Polyisocyanurate(PIR)
Polyurethane (PUR)
Application
SIP Structural Insulated Panels Sandwich Panel is high performing insulated wall
Application ranges from ceiling to flooring and everything in between
Magnesium Oxide (MgO) sandwich panels, also known as MgO Structural Insulated Panels (SIPs), are a cutting-edge construction material that combines the benefits of magnesium oxide boards with a lightweight core, typically made of expanded polystyrene (EPS) or rock wool. These panels are recognized for their exceptional fire resistance, moisture management, and thermal insulation properties. They offer high strength and rigidity while being lightweight, which simplifies the construction process and reduces the overall weight of the building structure. MgO sandwich panels are also known for their mold and mildew resistance, as well as their eco-friendly composition, making them a sustainable choice for modern construction projects. They are widely used in residential, commercial, and industrial settings for walls, ceilings, and roofs, providing energy efficiency and enhanced occupant comfort.
Technical Date | Units | EPS Sandwich panel | XPS sandwich panel |
Density | Kg/m3 | 18-20 | 36-40 |
Thermal conductivity,90 days,10ºC | W/mk | ≤0.04 | 0.027-0.03 |
Compressive strength at 10% deflection or yield,(Vertical) | kPa | ≥100 | ≤300 |
Tensile strength | kPa | ≥100 | ≤300 |
Temperature limits | ºC | -50,+75 | -50,+75 |
Coefficient of linear thermal expansion | mm/mk | / | 0.07 |
Water absorption | Vol-% | / | ≥1.00%n |
Capillarity | nil | / | nil |
Fireproof | More than 3 hours | ||
Advantages | 100% no asbestos ,Light weight,easy to install,Fireproof,Moisture proof, Waterproof,Anti corrosive,Energy efficient,Environmentally Friendly | ||
Other structural insulated panel Specification could be customized according to customer's requirement |
MgO sandwich panels offer several advantages over traditional building materials:
1. Lightweight and High Strength: MgO sandwich panels are significantly lighter than traditional materials while maintaining excellent strength and structural integrity, which facilitates easier handling and construction.
2. Fire Resistance: These panels are highly fire-resistant due to the inherent properties of magnesium oxide, which does not contribute to the spread of flames and provides a high melting point of approximately 2800°C.
3. Thermal Insulation: The core material, often EPS or rock wool, offers high insulation value, reducing heat transfer and lowering energy consumption for heating and cooling.
4. Sound Insulation: MgO sandwich panels effectively absorb and dampen sound waves, providing excellent sound insulation properties, which is beneficial in multifamily buildings and commercial spaces.
5. Moisture and Mold Resistance: MgO sandwich panels exhibit excellent resistance to moisture, preventing water penetration and subsequent damage. The magnesium oxide board used in these panels also has inherent mold resistance properties.
6. Environmental Sustainability: MgO panels are considered more environmentally friendly due to their durability, longer lifespan, and the ability to absorb CO2 during production, resulting in lower carbon dioxide emissions compared to other construction materials.
7. Health and Safety Benefits: MgO panels are resistant to fire, mold, and do not off-gas harmful fumes, providing a safer environment for occupants.
8. Efficiency in Construction: Buildings made from MgO SIPs can be assembled significantly faster than stick-built homes, reducing on-site construction time by several weeks, which also saves labor costs.
9. Reduced Construction Waste: SIP home construction, including MgO panels, drastically reduces construction waste and carbon emissions from transportation to and from the building site, appealing to those concerned about their carbon footprint.
Mgo eps sandwich panel

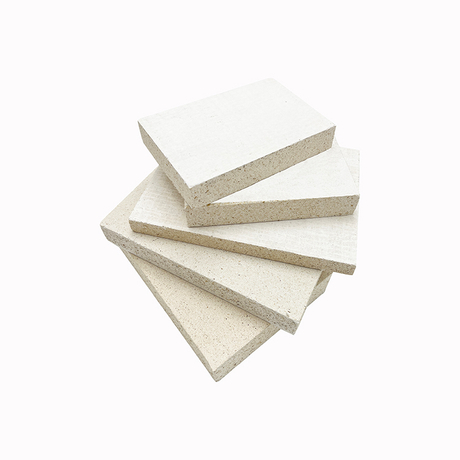

Magnesium oxide board
Core material
| |
Regular Size | Regular thickness |
1220X2440(mm) | Mgo panel :3-20mm |
1200X2700(mm) | |
1200X3000(mm) |
Structure | T&G | G&G | Sides closed |
![]() | ![]() | ![]() | |
Interface and thickness as well as special shape according to customer requirements |
Q: What’s your delivery time?
A: 15-20 days after receive the deposit.
Q: What’s your payment?
A: T/T 30% deposit and balance against B/L copy.
Q: Can you do customized product?
A: Yes, we can cut any sizes as required.
Q: What’s your company production capacity?
A: We can produce 8000 sqm per day.
Q: What’s your MOQ? Can we order mixing different sizes?
A: Yes. MOQ is 100 pcs and mixed loading also acceptable.
Q:Are you trading company or manufacturer?
A: We have two factories and one trading company.
Oriental Construction Material (Suzhou) Co.,Ltd is produce basic Fireproof Mgo board.
Oriental Construction Material (Suzhou) Co.,Ltd is produce further processed materials.
We developed two building systems based on MGO products. All products export through OCM trading company.
