MgSo4 Board
OCM
Light-003

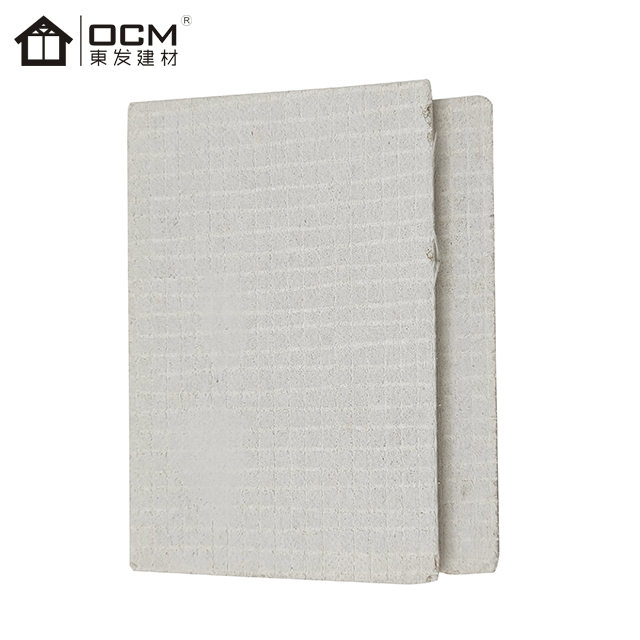

Product | Lightweight EPS Mgso4 board |
Brand | OCM |
Basic Compounds | (MgO)+(Mgso4s)+(glass fibre)+(EPS) |
LENGTH | 8 ft(2440mm) Customized |
WIDTH | 4 ft(1220mm) Customized |
THICKNESS | 6 8 10 12mm if other requested |
USE | Substrate for decorative wall |
Color | Grey and White |
Surface texture | Smooth And Rough |
Edges | Square |
Density | 0.8-1.0T/M3 |
Combustibility / Fire Ratings | non-combustible / A1 |
Moisture content | ≤8% |
Bending Strength | ≥20-30Mpa |
Impact Strength | > 9kJ/m2 |
Modulus of elasticity | ≥5000Mpa |
Dry Shrinkage | ≤0.3% |
Wet Expansion Rate | ≤0.3% |
Thermal Conductivity | ~0.44 W / mK |
Thermal Expansion Hot/Cold | 0,01 mm/mC (from temp +20C to -20C) |
Surface Alkalinity | 8-10 Ph |
Asbestos Analysis | Absent - not measurable |
Formaldehyde Analysis | Absent - not measurable |
TVOC-ASTM D5116-10 | Below measurable levels of test instruments |
Chloride ion content-ASTMC 871-11 | 0.012% |
Size | Weight-KG/Piece | Loading capacity in 20'ft CNT |
3mm x 1220 x 2440 | 9.0 | 2200pieces,8 wooden pallets |
6mm x 1220 x 2440 | 18.0 | 1100 pieces,8 wooden pallets |
8mm x 1220 x 2440 | 24.0 | 824 pieces,8 wooden pallets |
9mm x 1220 x 2440 | 27.0 | 732 pieces,8 wooden pallets |
10mm x 1220 x 2440 | 30.0 | 660 pieces,8 wooden pallets |
12mm x 1220 x 2440 | 36.0 | 550 pieces,8 wooden pallets |
15mm x 1220 x 2440 | 45.0 | 440 pieces,8 wooden pallets |
16mm x 1220 x 2440 | 48.0 | 412 pieces,8 wooden pallets |
18mm x 1220 x 2440 | 54.0 | 364 pieces,8 wooden pallets |
19mm x 1220 x 2440 | 57.0 | 348 pieces,8 wooden pallets |
20mm x 1220 x 2440 | 60.0 | 328 pieces,8 wooden pallets |
25mm x 1220 x 2440 | 75.0 | 264 pieces,8 wooden pallets |
