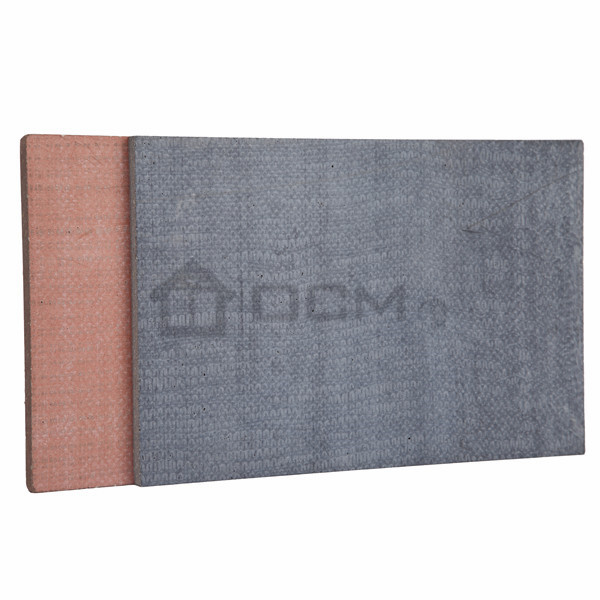

Magneisum Oxide Container Flooring Board

Magnesium Oxide Flooring Brief Introduction

Magnesium oxide flooring is manufactured by using special craft through totally automatic product line.
It is high strength magnesium oxide board. It also can be compounded with HPL Laminated fireproof board, it has more high strength and fireproofing property.

Availability:
Quantity:
  • MgSo4 Board

  • OCM

  • Subfloor-0011

1. Magnesium Oxide Flooring Brief Introduction

Magnesium oxide flooring is manufactured by using special craft through totally automatic product line.
It is high strength magnesium oxide board. It also can be compounded with HPL Laminated fireproof board, it has more high strength and fireproofing property.


2. Magnesium Oxide Flooring Specification
*Thickness: 3mm-25mm
*Standard size: 1200*2400mm; 1200*2700mm,1200*3000mm
*The Max length is 3660mm and the max width is 1220mm
*other sizes can be cut as per requirements.
*Surface treatment: Slurry, Non-slurry and Laminated.
*Backside treatment: Texture and sanded
*Edge: Square/Tapered/Beveled

Magneisum Oxide Container Flooring

Magneisum Oxide Container Flooring

Magnesium Oxide Flooring Technical Data

Compressive Strength~20 MPa (3, 000 PSI)
Impact Resistance> 6 kJ/m2
Tensile Strength> 5.5 MPa
Density (Specific Mass)~1000 Kg/m3 (+/-< 2%)
Moisture Absorption~26% maximum saturation (slow absorption rate)
Moisture Content~6%
Water Vapor Diffusion~28 / 35
Specific Heat~930 J/kgK
Thermal Conductivity~0.44 W / mK
Modulus of elasticity~6045 N/mm2
Flexibility
UNI E 12372
~20.1 N/mm2 maximum
12mm x 1220 x 2440 = 10 N/mm2
Surface Alkalinity~10 Ph
Thermal Expansion Hot/Cold0, 01 mm/mC (from temp +20C to -20C)
Expansion in Waterless than < 0.02% from ambient to saturation
Freeze / Thaw - UNI EN 520100 cycles without notable effects
Frost Resistanceno water drops form on surface
Combustibility / Fire Ratingsnon-combustible / 12mm exceeds 1 hr fire rating
Dimensional tolerancethick 0.2mm / width 2mm / length 3mm / Sq. 3mm
Toxicity Pollutants Heavy Metals
- UNI EN 12457-2
Below measurable levels of test instruments
Asbestos AnalysisAbsent - not measurable
Formaldehyde AnalysisAbsent - not measurable
ColorSlate Grey and Chalk White
Surface texturesmooth one side; uniform machine textured back


Magnesium Oxide Flooring Application



The flexibility of our flooring is ideal for many applications including residential, industrial shops and warehouses, Ready to Move buildings and trailers, hotels, factories, aircraft hangars and apartments.

Magnesium Oxide Flooring

Application for structural bearing loading flooring
