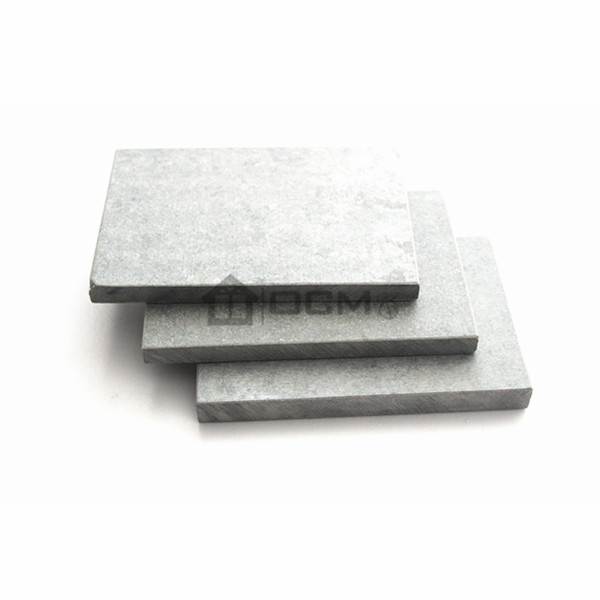

Fiber cement Board

Quantity:

It contains inorganic raw materials such as cement, silica powder and reinforced cellulose fiber. All OCM boards are autoclaved to become stable product. OCM fiber cement board does not contain any of asbestos fiber, however, it has strong bending strength like those with asbestos.



OCM fiber cement board can be applied not only for the interior use but also for exterior wall system. It has low water absorption rate and high impact resistant ability. These good advantages make it suitable for any purposes of applications.



OCM high density fiber cement board is made by wood lengthy fiber, concrete, silicon sand and so on. Made under the high pressure water vapor process, therefore, it performs well in humidity durability, force resistance, fire proofing. OCM fiber cement board is suitable in indoor partition, ceiling and decoration purpose.



Size & Color:

Standard size: 1220*2440mm

Thickness: 4-20mm

Max Width: 1220mm

Max length: 3000mm

Color: Grey, yellow, black, red, white

Color and size can be customized.



Property:

100% non-asbestos

Density:1000-1400kg/m3

Coefficient of thermal expansion: 0.24W/MK(JCIT54)

Bending strength: Over 13 Mpa (GB/T7019-1997)

Linear expansion rate: 0.1%

Water absorption rate: Less 0.19% (GB/T7019-1997)

Water penetration rate: 0%

Water content: 10%

Incombustibility according to cns 6532 and bs 476

Two point five three hours of fire rating for (6mm wall system with w-csp concrete)

Radioactivity: Standard (GB6566-2000)

Characteristic: Non-flammability A Grade(GB-8624-1997)



Heat insulation, stability, damp-proof, sound insulation, fire resistance. Details are as below:

1.      The wall is solid and firm inside, and resistant to impact pressure

2.      Painting, tiling and nailing is possible in the new system

3.      Noise reduction can be up to 46db

4.      Good efficiency

5.      Working environment can keep it dry and clean for better management

6.      Certificates with two point five three hours of fire rating



Type of Fiber Cement Board:

1.      Plain fiber cement board

2.      Woodgrain fiber cement board

3.      Acoustic perforating fiber cement board

4.      Siding fiber cement board


    Interior wall partition

    Interior wall decoration

    Pipeline & Conduit compartment

    Stair & Flooring

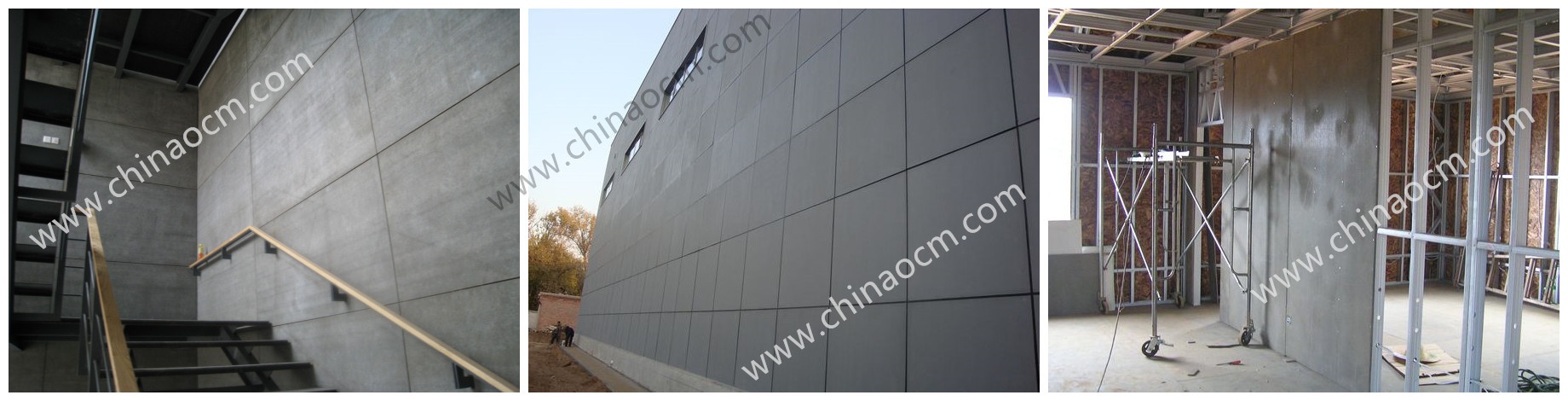

    Exterior wall cladding

    Ceiling board

    Pillar wrapping
