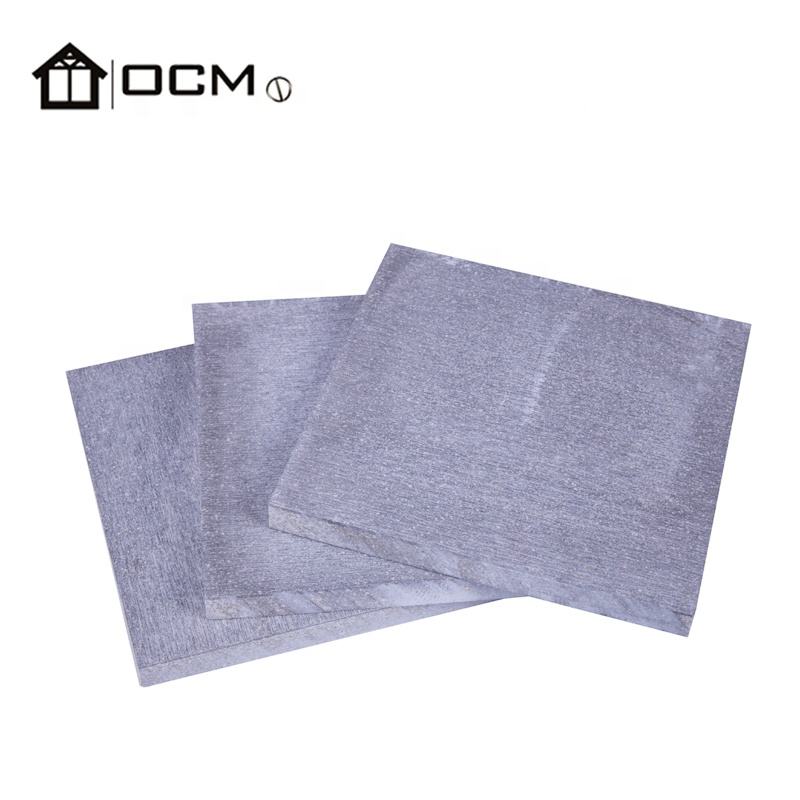

High Quality 3 Hour Fire Rated Waterproof Magnesium Oxide Cement Board

Container and House Flooring

MGO board is made of high purity magnesium oxide, MGO sulfate (Mgoso4)
replace of magnesium chloride(Mgcl2),high strength fiber glass mesh, perlite, non-woven fabrics.

Specifications:15-20mm mgo load-bearing floor for timber frame constructions is a newly developed type of incombustible inorganic board on the basis of the traditional magnesium oxide board.It is manufactured from 100% mineral components and recycled water .
It is also called fireproof board or Mgo sulfate board.

Availability:
Quantity:
  • MgSo4 Board
  • OCM
  • Subfloor-0016
High Quality 3 Hour Fire Rated Waterproof Magnesium Oxide Board




Container and House Flooring

MGO board is made of high purity magnesium oxide, MGO sulfate (Mgoso4)
replace of magnesium chloride(Mgcl2),high strength fiber glass mesh, perlite, non-woven fabrics.

Specifications:

15-20mm mgo load-bearing floor for timber frame constructions is a newly developed type of incombustible inorganic board on the basis of the traditional magnesium oxide board.It is manufactured from 100% mineral components and recycled water .
It is also called fireproof board or Mgo sulfate board.

The product is available in custom (color, size, thickness, etc.)


MGO BOARD APPLICATION RANGE


Application Thickness Length * width (mm)
Ceiling 3~6(mm) 1200X2400mm
Interior Wall 8~12(mm) 1200X2440/2700/3000
Exterior Wall 8~15(mm) 1220X2400/2700/3000mm
Floor 15~20(mm) 600X1200/2400/2700/3000mm
Edges type
15-20mm mgo load-bearing floor for timber frame constructions customized size and types are available.



Item Apparent density Flexural strength Combustibility Chloride ion content Impermeablity
Performance ≥1.25g/cm3 ≥13MPA Fireproof Grade A Free no scumming


 ABOUT US

CHINA OCM(Oriental Construction Material) is located in Zhangjiagang City, Jiangsu Province, China.
We are specialized in ecological construction industry, innovation, manufacturing and distribution of fireproof building materials since 1999. Our fireproof wall materials have already passed the international tests like CE and ASTM.
We have a sound quality control system, normative progress operation standard, and advanced production equipment.
Utilizing the incredible properties of natural minerals, OCM has created a catalog of highly innovative and energy effective fireproof products covering roofs to foundation and everything in between.

FAQ


High Quality 3 Hour Fire Rated Waterproof Magnesium Oxide Board


Q: What’s your delivery time?
A: 15-20 days after receive the deposit.

Q: What’s your payment?
A: T/T 30% deposit and balance against B/L copy.


Q: Can you do customized product?
A: Yes, we can cut any sizes as required.

Q: What’s your company production capacity?
A: We can produce 20,000 sqm per day.

Q: What’s your MOQ? Can we order mixing different sizes?
A: Yes. MOQ is 100 pcs and mixed loading also acceptable.
