OCM Wholesale Excellent Fireproof Mgo Board Magnesium Oxide Sulfate Sanding Board

Quantity:



Inquire Add to Basket

Warranty:
More than 5 years
After-sale Service:
Online technical support
Project Solution Capability:
total solution for projects
Application:
Villa
Design Style:
Traditional
Place of Origin:
Jiangsu, China
Brand Name:
OCM
Model Number:
MGSO4
Raw material:
Magnesium oxide +MgSo4 +Perlite+Fiber Glass Mesh +Non-Woven Cloth
Size:
1200X2400mm, 1220X2440mm or customized
Thickness:
3-25mm
Density:
1.0-1.4 g/cm3
Edge:
Square, shiplap, T&G
Surface:
Standard, sanding
Color:
White, grey
Fireproof Grade:
A1 Non-combustible
Certification:
ISO9001
Advantage:
Chloride free, Fire resistant

Product Description

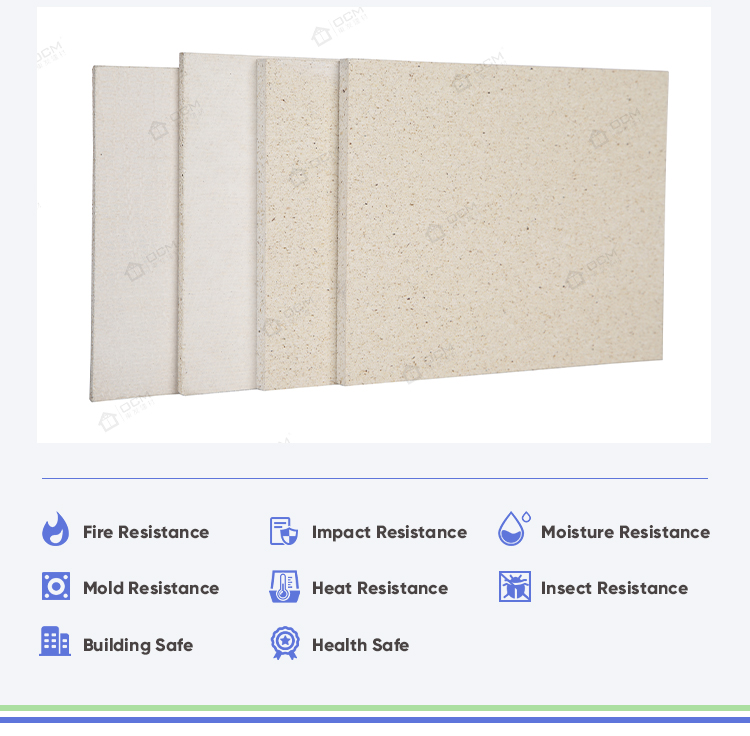

Substrate Sanded Mgso4 Board

It made from magnesium oxide (Mgo), magnesium sulfate (Mgso4), bamboo filler and reinforced by fiber glass mesh.

Sanded Mgo board surface is by sanded treatment, which made it smoother and flatter, the thickness is more accurate.

It has the characteristics of A1 class fire rated, price flatness, dimension stable and environmental protection, specialized used as the core or underlay material of composite Board and flooring.

We can provide UV sealing process for better adhesive fusion.

Product	Substrate Sanded Mgso4 Board
Brand	OCM
Basic Compounds	(MgO)+(Mgso4s)+(glass fibre)+(Bamboo fibre)
LENGTH	8 ft(2440mm) Customized
WIDTH	4 ft(1220mm) Customized
THICKNESS	4 5 6 8 10mm if other requested
USE	Substrate for decorative board.
Color	Grey and White
Surface texture	One sanded or two sanded. One polish.
Edges	Square
Density	1.1-1.2T/M3
Combustibility / Fire Ratings	non-combustible / A1
Moisture content	≤8%
Bending Strength	≥20-30Mpa
Impact Strength	> 9kJ/m2
Modulus of elasticity	≥5000Mpa
Dry Shrinkage	≤0.3%
Wet Expansion Rate	≤0.3%
Thermal Conductivity	~0.44 W / mK
Thermal Expansion Hot/Cold	0,01 mm/mC (from temp +20C to -20C)
Surface Alkalinity	8-10 Ph
Asbestos Analysis	Absent - not measurable
Formaldehyde Analysis	Absent - not measurable
TVOC-ASTM D5116-10	Below measurable levels of test instruments
Surface /Internal bonding strength	≥1.3MPa
Chloride ion content-ASTMC 871-11	0.012%

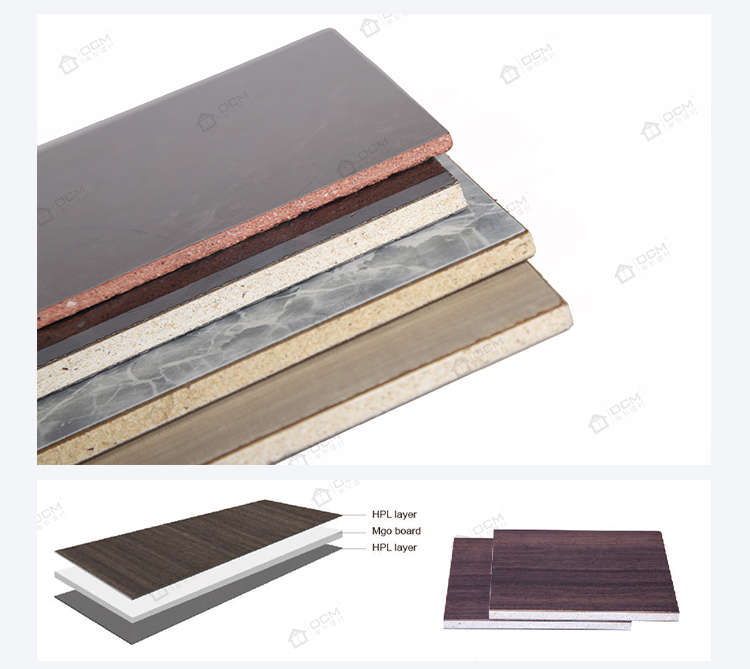

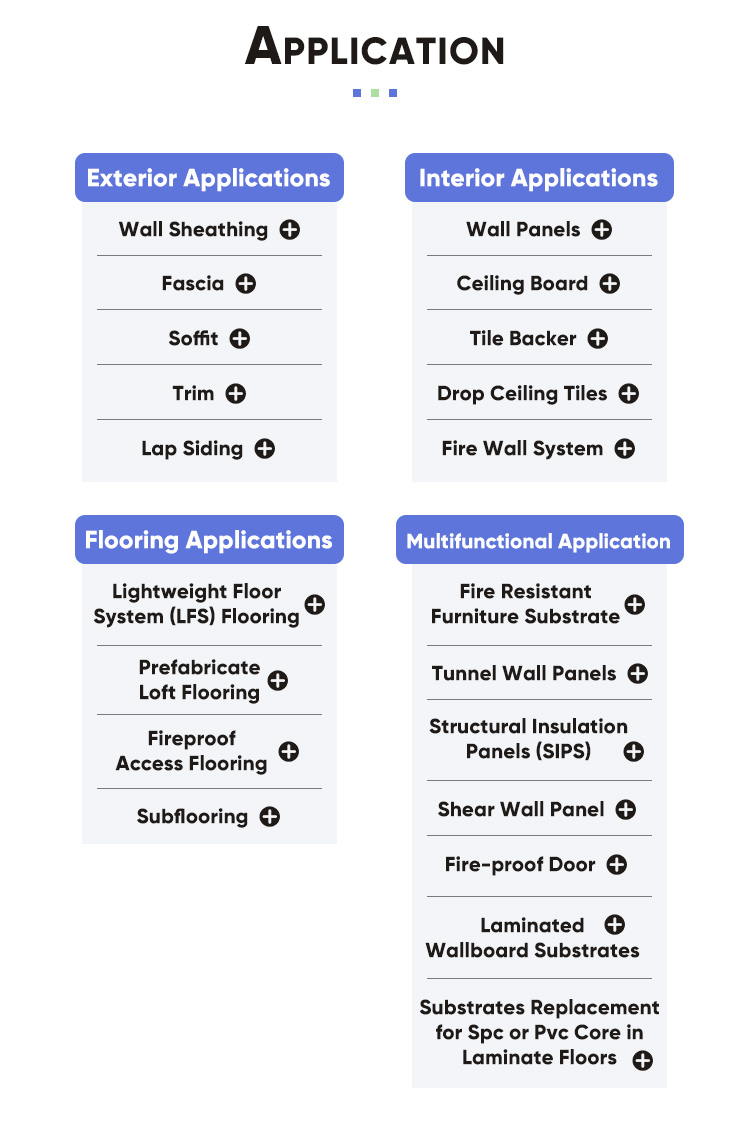

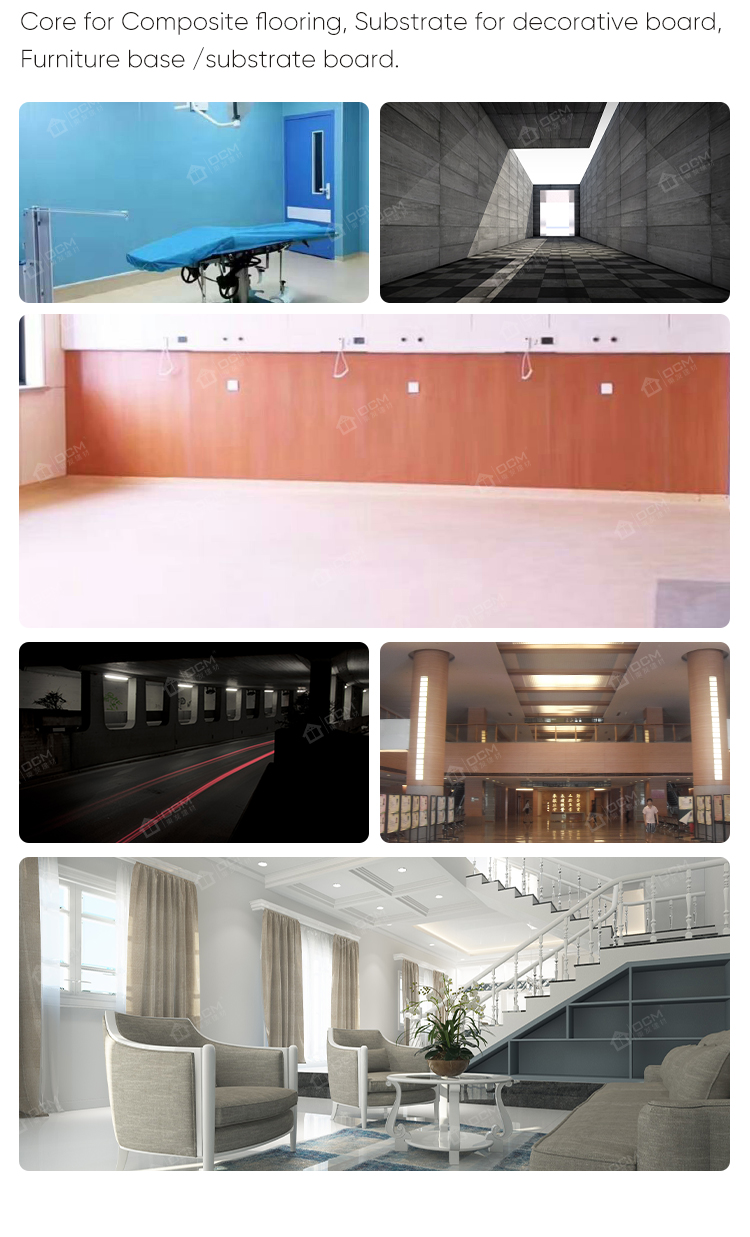

Core for Composite flooring, Substrate for decorative board, Furniture base /substrate board.

Our History

• 2012-2013

OCM began to produce and export chlorine free mgoboard 300 containers of Algerian military project. All boards apply on
steel frames.

• 2014

OCM was supplied to Spain and Italy Market with good reputation.

• 2015

OCM began to export chlorine free mgoboard to Chile and Colombia.

• 2016-2017

OCM entered to the Korean market and participate in government affordable housing projects in local and Southeast Asian countries, all using MgSO4 board in smart prefabricated system.

• 2018-2019

OCM focuses on researching and producing high level sanded mgso4 board and obtained a full set of test reports and
certificates for the Australian and New Zealand markets.

• 2021

OCM exported to Famous US company and approved by ICC audit factory

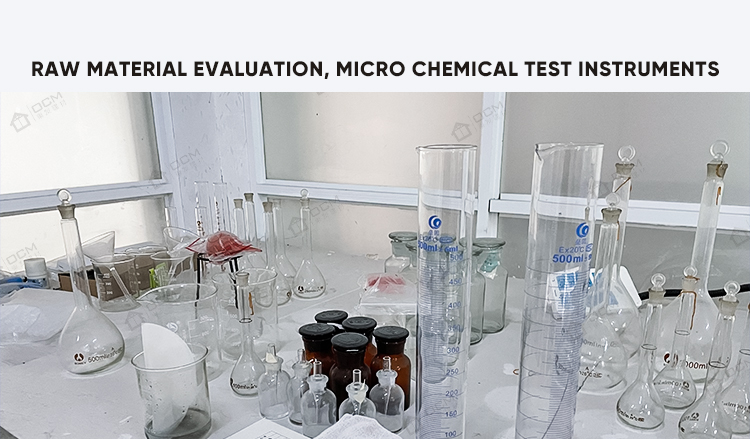

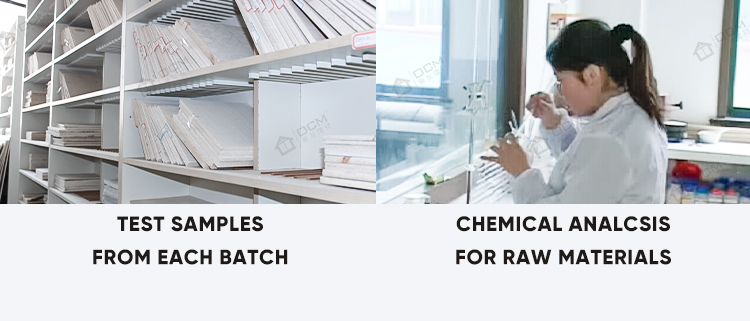

We have our own laboratory, 5 Professional R&D Staffs.which can carry out raw material evaluation, micro chemical reaction detection and physical performance evaluation. We research and design different density, strength, water absorption, combined structure of panel, flexural performance, nail holding force and fire resistance, and provide complete test reports.

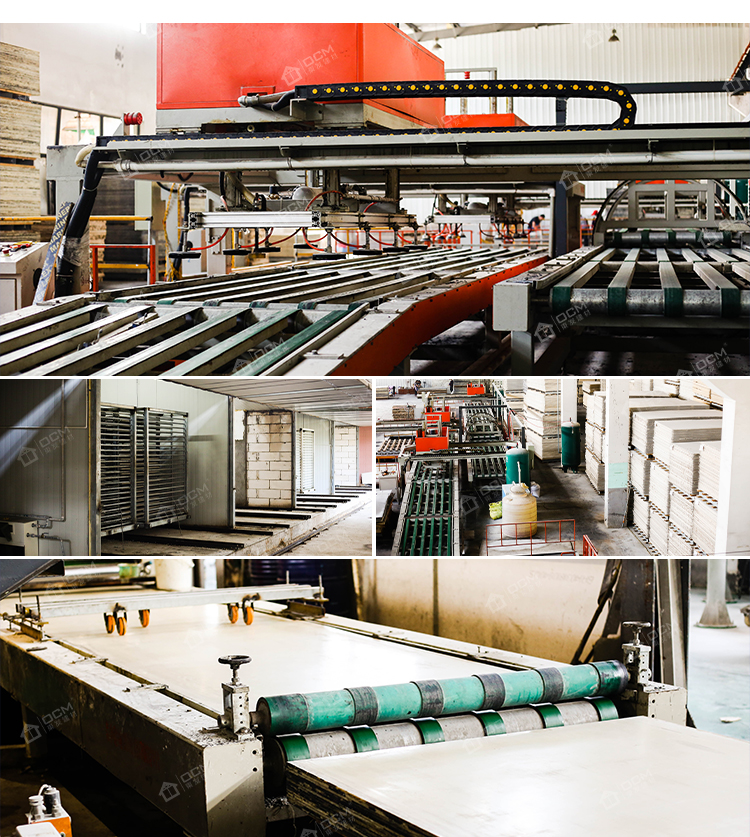

Our factory has three production lines to make different grades of boards to meet the different application. The latest high automation equipment can produce high-Level products such as sanding board, shear wall and load-bearing subfloor. New equipment and facilities include automatic feeding and mixing system, plate forming process system, plate automatic demoulding system, sanded line and UV coating line. With an annual output of 2.1 million plates and about 3000 containers.

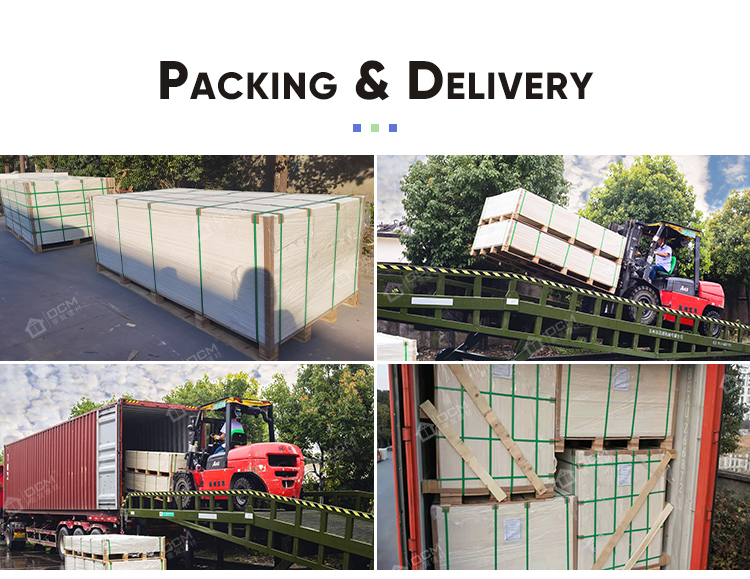

Size	Weight-KG/Piece	Loading capacity in 20'ft CNT
3mm x 1220 x 2440	9.0	2200pieces,8 wooden pallets
6mm x 1220 x 2440	18.0	1100 pieces,8 wooden pallets
8mm x 1220 x 2440	24.0	824 pieces,8 wooden pallets
9mm x 1220 x 2440	27.0	732 pieces,8 wooden pallets
10mm x 1220 x 2440	30.0	660 pieces,8 wooden pallets
12mm x 1220 x 2440	36.0	550 pieces,8 wooden pallets
15mm x 1220 x 2440	45.0	440 pieces,8 wooden pallets
16mm x 1220 x 2440	48.0	412 pieces,8 wooden pallets
18mm x 1220 x 2440	54.0	364 pieces,8 wooden pallets
19mm x 1220 x 2440	57.0	348 pieces,8 wooden pallets
20mm x 1220 x 2440	60.0	328 pieces,8 wooden pallets
25mm x 1220 x 2440	75.0	264 pieces,8 wooden pallets

1.What is OCM® mgo board made of? What is the chloride content?

All mgo board consists of 3 elements, magnesium oxide, salt and crystal water.
The main component of OCM® Mgo board is MgO which is completely non-flammable and can be used for fire protection.
There are mainly two different types of salt:
- Magnesium oxychloride hydrated /Mgcl2 (steel corrosion risk)
-Magnesium oxysulfate hydrate/Mgso4(OCM mgo board)
OCM® MgO Board is a chloride-free Mgoso4 board. It uses magnesium sulfate instead of magnesium chloride.magnesium sulfate makes MgSo4 panels incredibly waterproof by preventing moisture from absorbing back into the halogens in the board.

According to The China Magnesium Oxide Board Industry Association issued a new standard of magnesia board industry, dissolvable (free) chloride ion content is below 5%, Content of Chloride is below 10%.
OCM mgso4 board Chloride content is below 0.012%, with reference to ASTM C871-11
you don't have to worry about "crying boards" when you use OCM® MgO Board on steel or metal frame.

2. Is OCM® Mgo board waterproof?

OCM® Mgo board is considered to be moisture resistant, but during prolonged exposure, moisture can affect it and it will
experience hydrothermal expansion. When used outdoors, Mgo board should be covered or coated to protect it from the environments, we can do waterproofing before leaving the factory, such as adding waterproofing elements or sealing with UV paint.

3.What is the difference between OCM® mgo board and other mgo boards?

-OCM is new generation chloride free mgo board. Thickness 3-30mm.Max size 1220*3050mm.
-We are ICC Audit factory, Controlled from Raw materials to finished products are strictly inspected.
-OCM mgo has outstanding physical performance
.Standard strength 6mm> 20-35 Mpa, 12mm > 15– 20Mpa,18mm≥20-25Mpa.
.Minimum low water absorption rate <8-10%
. Chloride Content ≤0.012%
. Fire resistance up to 270mins.

4. Is OCM® Mgo Board safe product?

Yes. OCM® Mgo board is safer than many comparable building products. It is a mineral based product made with non-toxic ingredients. (See our test report of Asbestos content, TOVC) It is completely recyclable and resistant to mold, mildew, fungus and allergens. It is also free of carcinogens and silicas.
