Product Introduction
OCM OSB EPS SIP is a composite building material,It consists of a sandwich of two layers of Oriented strand board(OSB) with an insulating foam Expanded Polystyrene(EPS) in between.
Advantages of our OSB EPS SIP board
1.High rigidity: resistance to distortion, splitting and delamination and keeps excellent nail and screw holding ability.
2.Easy to work: special structure,stable in dimensions and easy for processing.
Readily sawn,drilled,planed,routed and sanded. May be nailed,stapled or screwed close to the edge without splitting. Simple to glue ,paint and stain.
3.Flaw-free: no knotholes, core voids or points of weakness.
4.No fumigation: widely used in export package.
5.Low level of swelling in water, moisture and waterproof .
Applications of our OSB EPS SIP board
1) Partition
2) External wall
3) Roof
4) Movable house
5) Container House
More information please call us on +86-15162322239 .Also available on what’s app and WECHAT, or send email to info@chinaocm.com. Any questions please don’t hesitate to contact us.
The production line of sanded mgo board needs to meet the requirements of complete functions, professional equipment and complete specifications. From material preparation to factory inspection, every process must be strictly implemented to ensure the stable output of product quality.
What is the production line process of the sanded mgo board?
How to choose sanded mgo board according to material properties?
How to choose sanded mgo board according to chloride ion content?
Material preparation: magnesium oxide, magnesium chloride, perlite, non-woven fabric, glass cloth, sawdust, and water are put into the mixer after quantitative measurement to form raw material slurry.
Forming and conveying: the non-woven fabric and glass cloth are uncoiled and then enter the forming machine. The mold is placed on the platform of the forming machine and is ready for use. The slurry of the mixer falls on the mold and enters the forming machine, and extrudes the glass magnesium plate of the required specification on the forming machine. , and then cut into required lengths, and distributed into the oxidation chamber for oxygen protection through the transit transverse system.
Dehalogenation: Soak the oxidized sanded mgo board in water for dehalogenation.
Trimming: The sanded mgo board after dehalogenation is processed by an automatic trimmer to complete the fixed-length trimming, packaging and stacking of the glass magnesium board. After the stacking is completed, it is transported to the packaging area by a forklift for inspection and packaging, and the complete production line process is completed.
In the production process of sanded mgo board, to control the flatness of the product and not to deform It brings a lot of troubles and its negative effects, and it is also a relatively common contradiction in the market. The so-called corner-cutting situation at the expense of product quality because of cost savings and production cycle The customer makes a clear comparison on price and quality.
Chloride ion content: At present, most parts of the world have made clear regulations on the chloride ion content of sanded mgo board, and the proportion should not exceed 10%. Because the chloride ion content is too high, it will cause the product to effluent and return to moisture, which is also called return to halogen in the industry. Because once the product returns to halogen, it is impossible to continue to use it, it must be removed and replaced, and there is no other remedy. Therefore, preventing the return of halogen is the first priority to identify the quality of the fireproof board. The products that will return to the halogen are worthless products, no matter how beautiful their appearance is, there is no real meaning.
Oriental Construction Material (SuZhou) Co., Ltd has committed to providing the most suitable sanded mgo boards at a reasonable price.
Magnesium oxide boards have the characteristics of light weight, fire resistance, high strength, sound absorption, heat insulation, non-toxic and harmless, corrosion resistance, no mildew and so on. It can be used as wall, ceiling, floor covering etc.
Are there different colors for magnesium oxide boards?
What are the physical properties of magnesium oxide boards?
How to deal with the slight accumulation of water on the magnesium oxide board?

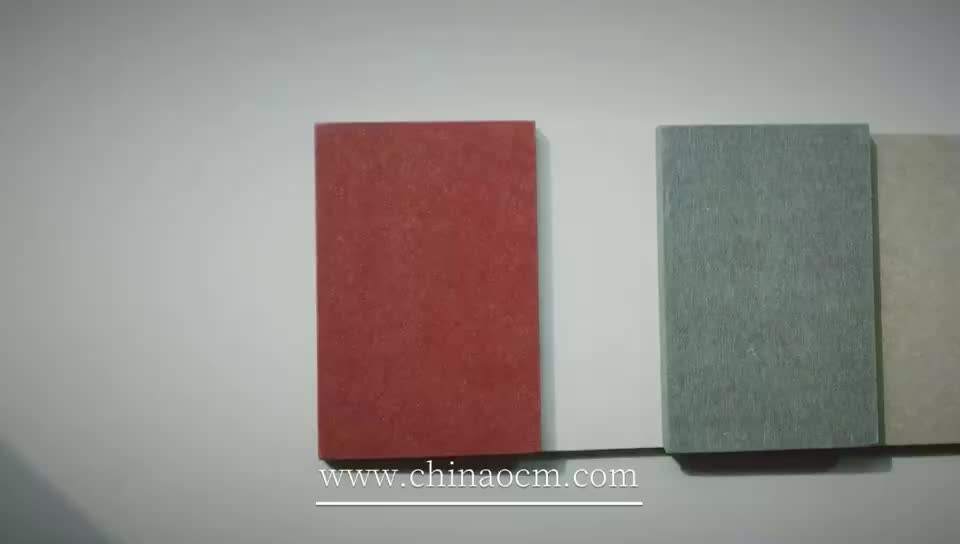

1. Colored glass magnesium plate products
This kind of magnesium oxide boards is mutually modulated on the basis of seven colors to produce different colored glass magnesium plate products: red, white, orange, brown, blue, etc. These products are mainly used for decorative panels in construction and decoration. Fireproof, easy to bend, easy to process, nail, saw, plane, glue and other properties of wood materials.
2. Magnesium plate of white glass
This kind of magnesium oxide boards is the main raw material for the production of glass magnesium plate products and the base color of magnesium oxide. The physical properties of this product type are essentially the same as those of the colored glass magnesium plate. Depending on market demand, it must be produced according to density, hardness, fire protection class, etc. In addition to fire resistance, a number of products also have certain thermal insulation, sound insulation, thermal insulation and other properties.
3. Black or grey
It is the natural color of magnesium oxide boards, mixed with auxiliary fillers, such as adding fly ash, volcanic ash, etc., and some products add black pigments or dyes during production, such as adding black water-based soot paste. It is mainly used in the construction of partition walls, indoor fire protection, exhaust gases, smoke exhaust ducts, etc. It has high requirements in density, hardness, impact strength, bending strength and other performance requirements.
1. Vaccinate the hardened body of magnesium oxide board to produce a high degree. This is due to the 518 crystal phase network structure formed by it along with MgO and water. The layout features a very strong tower hinge system that can withstand a lot of pressure.
2. Make sure the magnesium oxide board has excellent low temperature resistance. Magnesium chloride itself is an antifreeze.
3. The magnesium oxide board has good fire resistance and the melting point of magnesium oxide is 2270 ℃. Magnesium chloride releases chlorine gas at 118°C to quickly extinguish the fire.
1. Install an exhaust fan around the magnesium oxide board. Improvement of dehumidifier
2. You can close the doors and windows and use a dehumidifier. Strong dehumidification for two days. The magnesium oxide board does not drip or the wet area gradually shrinks. This avoids too much mold and too high humidity.
We are sincerely to inform you that we return on work today!
Hope a win-win cooperation.our products mgo sulfate board can use from ceiling to floor and everything between.
We are aiming to supply most safe, affordable and easy building solutions.
Any inquiries, Please Call us on +86-15162322239 or Send email to info@chinaocm.com.
Wood grain fiber cement board is a kind of Decorative fiber cement board,With high temperature and high pressure steaming
treatment. It is prepainting in our factory. Its waterproof used popular for exteroir wall siding and cladding.
MONET IS A WOOD GRAIN SIDING.EASY TO MAINTAIN AND RESISTANT TO MOLD. HARD AS STONE, BEAUTIFUL AS WOOD, OUR SIDINGS RANGE OFFERS YOU DIFFERENT SOLUTIONS DEPENDING ON YOUR NEEDS.
FCB SIDING .MONET AVAILABLE IN 24 COLOURS, WITH A WOODGRAIN OR SMOOTH FINISH TO CREATE A PERFECT AESTHETIC FINISH.
Thickness | 78mm,10mm,12mm |
Length | 3000mm,3660mm |
Width | 200mm,210mm |
Density | 1.8kg/m2 |
Connection type | Shiplap,T&G |
Color | RAW CEMENT |
Single Color | |
Double Color |
Advantages:
•Extensive selection of standard colors with various paint layers
•Can be placed horizontally or vertically
•Very maintenance-friendly: simply wash with soap and water
•Dimensional stability: panels don't move due to temperature changes (unlike PVC or wood)
The magnesium oxide board is made of non-combustible materials such as magnesium oxychloride, magnesium oxide, alkali-resistant glass fiber cloth, wood chips, etc., and is processed by a full set of automatic assembly line equipment with a special production process. It has many advantages such as environmental protection, odorless, non-toxic, non-flammable, smoke-free, high-strength and light-weight, sound insulation and heat preservation, waterproof and fireproof, non-freezing and non-corrosion, minimal expansion and shrinkage rate, no cracking, no deformation, etc.
What are the characteristics of the use of magnesium oxide board?
What are the advantages of using magnesium oxide board?
What is the reason for choosing magnesium oxide board?
1. Storage
The magnesium oxide board can resist bad weather, but in order to keep it dry during use, it is recommended that the user should store it indoors, and the ground should be flat or plywood.
2. Processing
The magnesium oxide board can be broken by a hand saw, a chainsaw, or a utility knife with a ruler. It can be fixed with iron nails, self-tapping screws, nail gun or drilling holes.
3. Decoration
The magnesium oxide board can be pasted with wallpaper, red and white beech veneer, paint, paint, tile, mosaic, etc.
The impact strength of magnesium oxide board reaches 2.5KJ/m^2, exceeding the standard ≥2.0 index.
Waterproof performance of magnesium oxide board: the inherent moisture resistance of magnesium oxide board, which is required for outdoor use of aluminum-plastic board lining board, can naturally restore to the original moisture content after rain, and will not deform or fall off. The magnesium oxide board can meet the requirements of use after a long time of practice.
Green environmental protection: Magnesium oxide board uses natural magnesia mineral powder, 100% free of harmful substances such as asbestos, formaldehyde and ammonia, and is a green environmental protection product. With its natural inorganic properties, it is moisture-proof and mildew-proof, and at the same time, its business meets the standards of insect-proof and anti-corrosion in European and American countries.
Economy: Magnesium oxide board can be used in a wide range and can replace some wood boards. It is light in weight and fast in construction. It can save 20-30% of material cost and labor cost. Making aluminum composite panel lining can save 50% of material cost, which is really high. Quality eco-friendly decorative materials.
Practicality: Magnesium oxide board can be nailed, planed, sawed, bent, tiled, used as lining board, bottom plate, easy to install water and electricity settings, making the wall more beautiful and durable.
Lightweight and anti-seismic: filled with sawdust, sawdust and other substances, the apparent density is only 0.9-1.3g/cm3, which greatly reduces the load of the building. At the same time, magnesium oxide board increases the usable area by 60% compared with ordinary decoration boards.
The magnesium oxide board is installed quickly, saving your precious time.
OCM products are widely used in 178 countries and areas, such as USA, Sweden, Italy, Bulgaria, Estonia, Singapore, South Korea, Israel, Brazil, Chile, Ecuador, Malaysia, Thailand, Philippine, Syria, Russia, Panama, Turkey, etc.
OSB stands for “Oriented Strand Board".OSB is made from thin veneer strands that are bonded together with a synthetic resin. OSB consists of three cross-oriented layers with the surface of the board formed from strands oriented along the length of the board and the core strands arranged in cross orientation. OSB sandwich panels which has a three-layered structure consisting of sheets of structural boards, and insulation layer between them. All the details of such panels are glued together by hot pressing.
Standard size 1220*2440mm
Advantage
1) Tight construction and high strength
2) Minimum twisting, delamination or warping
3) No rotten or decay, strong against corrosion and fire
4) Water proof, consistent when exposed in the natural or wet environment
5) Low formaldehyde emission
6) Good nailing strength, easy to be sawn, nailed, drilled, grooved, planed, filed or polished
7) Good heat and sound resistant, easy to be coated
Structural Insulated Panels (SIP's) are used in floors, walls, and roofs providing an extremely durable, strong and energy-efficient high performance material. Structural Insulated Panels (SIP's) are typically made by foam insulation between two structural skin surfaces such as Mgo Board. These panels usually are manufactured in various sizes or dimensions with thickness varying between 4 to 8 inches.
Structural Insulated Panels, can also be manufactured on larger sizes to custom works but they will require some type of crane to erect them. Structural Integrated Panels (SIP) interior sheathing material can also be tailored to specific needs as required by the project specifications.
Benefits of Structural Insulated Panels
Some of the benefits of using Structural Insulated Panels are:
Using SIP higher R-values can be obtained
Higher strength-to-weight ratio
The insulation offered by SIP's is superior when compared to studs or traditional construction methods
SIP can offer energy savings between 12% to 14%
Using SIP's a more air-tight unit can be build, resulting in a quieter and more comfortable structure
SIP's are extremely strong, energy-efficient and offer a cost-effective alternative
SIP's will save you money with a faster construction method
Reduced amounts of waste and labor
SIP's will produce less expensive heating and cooling equipments inside the structure
SIP's produces flatter surfaces to work with
No need to look for studs to place fasteners
No curvatures due to drying of the material
Can be treated against insects
Structural insulated panels can be used in walls, ceilings, floors and roofs
Structural insulated panel wall systems were adopted into the International Residential Code (IRC) on May 22, 2007
